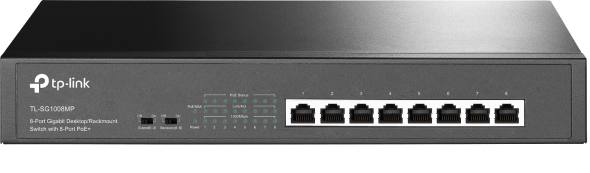

TP-Link 8 Port Gigabit POE+ For All Ports Switch



8× 10/100/1000Mbps RJ45 ports.

Equipped with 8× PoE+ supported ports to transfer data and power over a single cable.

Works with IEEE 802.3af/at compliant devices, expanding home and office networks.

Innovative energy-efficient technology reduces power consumption.

Supports PoE+ standard with total power budget of 153W* and up to 30W per port.

Up to 250m data and power transmitting range under Extend Mode**.

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

Plug and play design, no configuration required.



  • Interface: 8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
  • Network Media:

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

  • Fan Quantity: 1
  • Physical Security Lock: No
  • Power Supply: 100-240VAC, 50/60Hz
  • Packet Forwarding Rate: 11.904 Mpps
  • PoE+ Ports(RJ45): Standard: 802.3af/at compliant, PoE+ Ports: 8 Ports, Power Supply: 153W
  • Mac Address Table: 4K
  • Buffer Size: 1.5Mbits
  • Jumbo Frame: 16 KB
  • Switching Capacity: 16Gbps
  • Dimensions: ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
  • Mounting: Desktop/Rack Mountable
  • Max Power Consumption • 8.77 W(220V/50Hz. no PD connected),172.49 W(110V/60Hz. with 153W PD connected)
  • Max Heat Dissipation • 29.91 BTU/h(no PD connected), 588.19 BTU/h(with 153W PD connected)


  • Advanced Features:

• Compatible With IEEE 802.3af/at Compliant PDs
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-8)

  • Transfer Method: Store-And-Forward


  • Certification: FCC, CE, RoHS
  • Package Contents: TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
  • Environment:

Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
