TP-Link 32-Bit Gigabit PCIe Network Adapter

10/100/1000Mbps PCIe Adapter

32-bit PCIe interface, saving the finite chassis space

Wake-on-LAN, convenient to manage over LAN

HARDWARE FEATURES

• Standards and Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
• Interface: PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX
• Network Media:

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

• LED: Status
• Wireless Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
• Data Rates:

10/100/1000Mbps for Half-Duplex mode,
20/200/2000Mbps for Full-Duplex mode

• Dimensions: 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
• Flow Control: IEEE 802.3x Flow Control (Full-Duplex)

OTHERS

• Certification: FCC, CE, RoHS, BSMI, VCCI
• Package Contents:

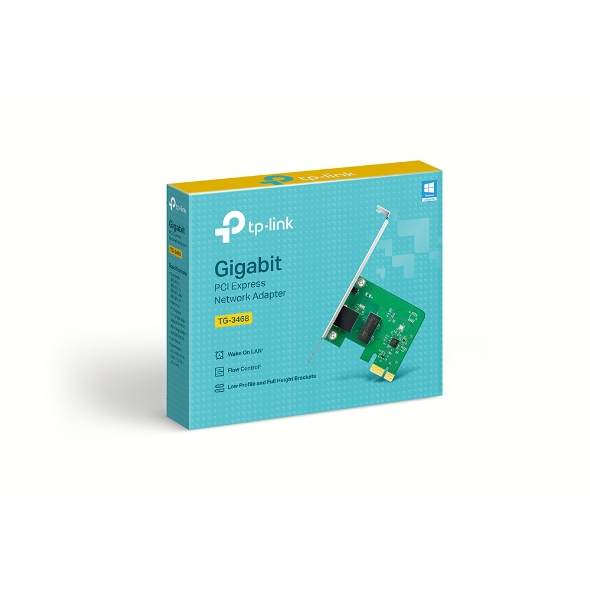

Gigabit PCI Express Network Adapter TG-3468
Quick Installation Guide
Resource CD
Low-profile Bracket

• System Requirements: Windows 10/8.1/8/7
• Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
