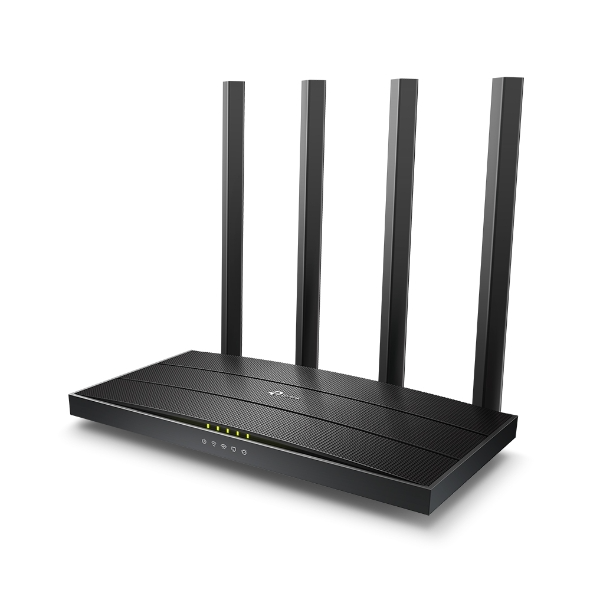

TP-Link Archer A6 AC1200 Wireless MU-MIMO Gigabit Router (OneMesh)

AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 400 Mbps at 2.4 GHz band

MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance

Boosted Coverage – Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals

Access Point Mode –Supports AP Mode to transform your wired connection into the wireless network

Easy Setup – Set up your Wi-Fi in minutes with the TP-Link Tether app.

SECURITY

• Network Security:

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

• Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
• WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

WIRELESS

• Standards:

Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

• WiFi Speeds:

AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)

• WiFi Range:

3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

• WiFi Capacity Medium:


Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

• Working Modes: Router Mode, Access Point Mode



HARDWARE

• Processor: 1.2 GHz CPU
• Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports
• Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button
• Power: 12 V ⎓ 1 A

SOFTWARE

• Protocols: IPv4, IPv6
• OneMesh™
• Parental Controls: URL Filtering, Time Controls
• WAN: Types Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management: Tether App, Webpage

OTHER

• System Requirements:

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)

• Certifications: FCC, CE, RoHS
• Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

• WiFi Transmission Power:

CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)

• WiFi Reception Sensitivity:

5GHz:
11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm；

PHYSICAL

• Dimensions (W×D×H): 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)
• Package Contents: Wi-Fi Router Archer A6, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
