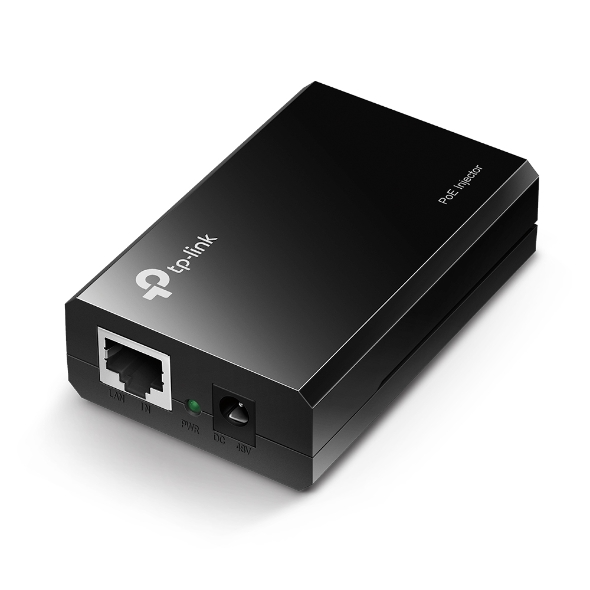

TP-Link Single Port PoE Supplier Adapter, IEEE 802.3af, Up To 100M

IEEE 802.3af compliant

Auto-determine the necessary power requirements

Gigabit speed support

Plug-and-Play, requires no configuration

HARDWARE FEATURES

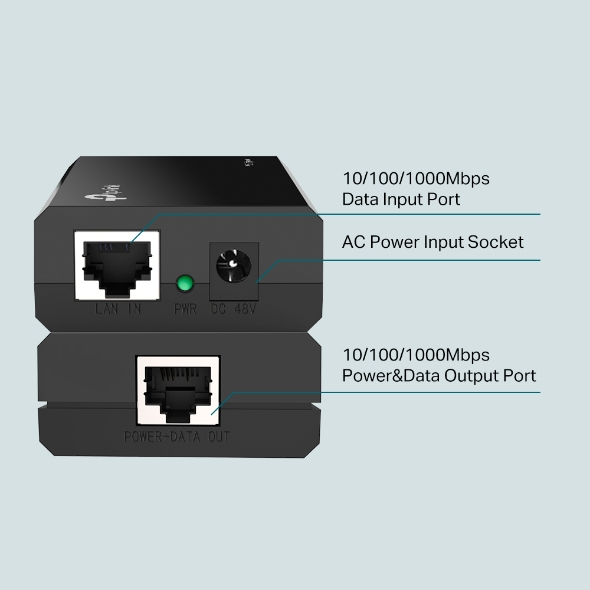

• Interface:

2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT

• Network Media:

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

• Power Supply: 15.4W (Max. 48VDC)
• LED Indicator: PWR
• Dimensions: ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)

SOFTWARE FEATURES

• Basic Function: Compatible With IEEE 802.3af Compliant PDs, Delivers Power Up To 100 Meters, Auto-Determine The Necessary Power Requirements

OTHERS

• Certification: FCC, CE, RoHS
• Package Contents: Gigabit PoE Injector TL-POE150S, Power Adapter, RJ45 Cable, Installation Guide
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
• Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
