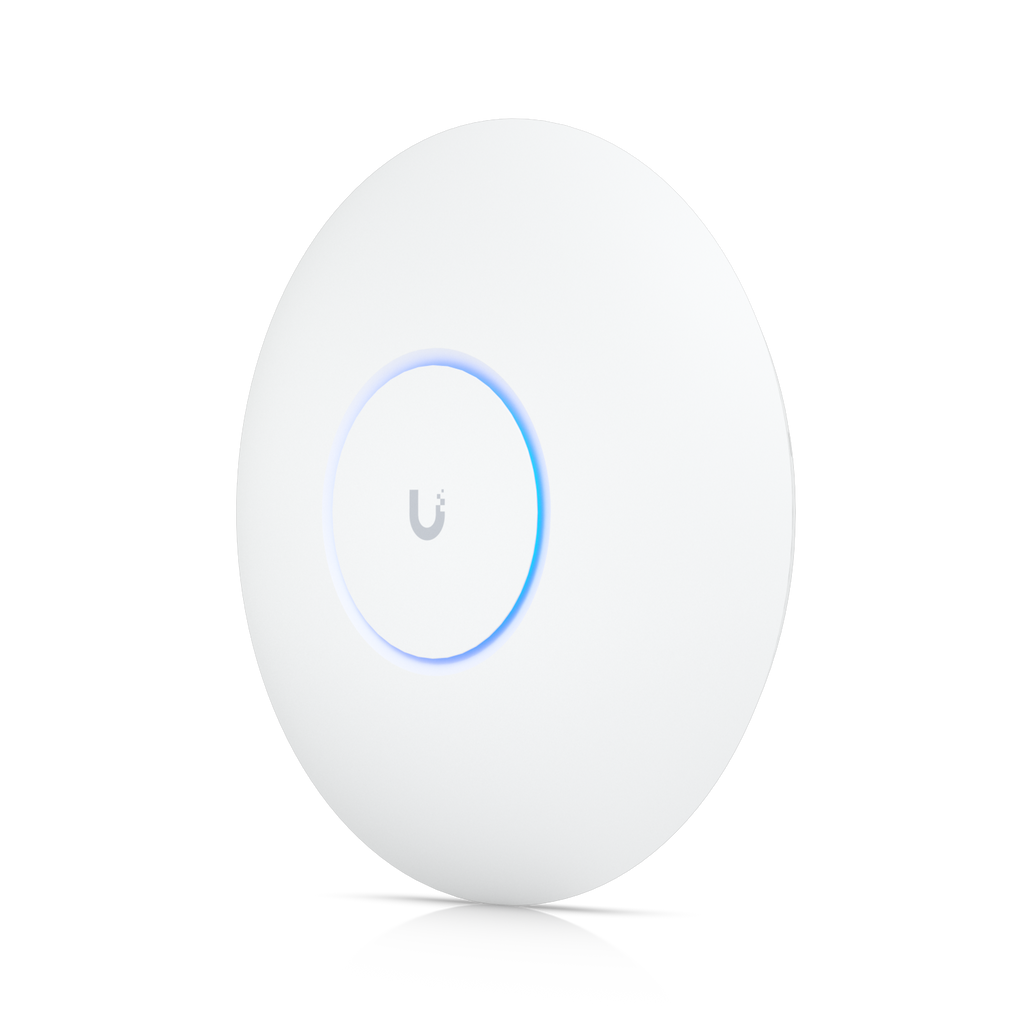

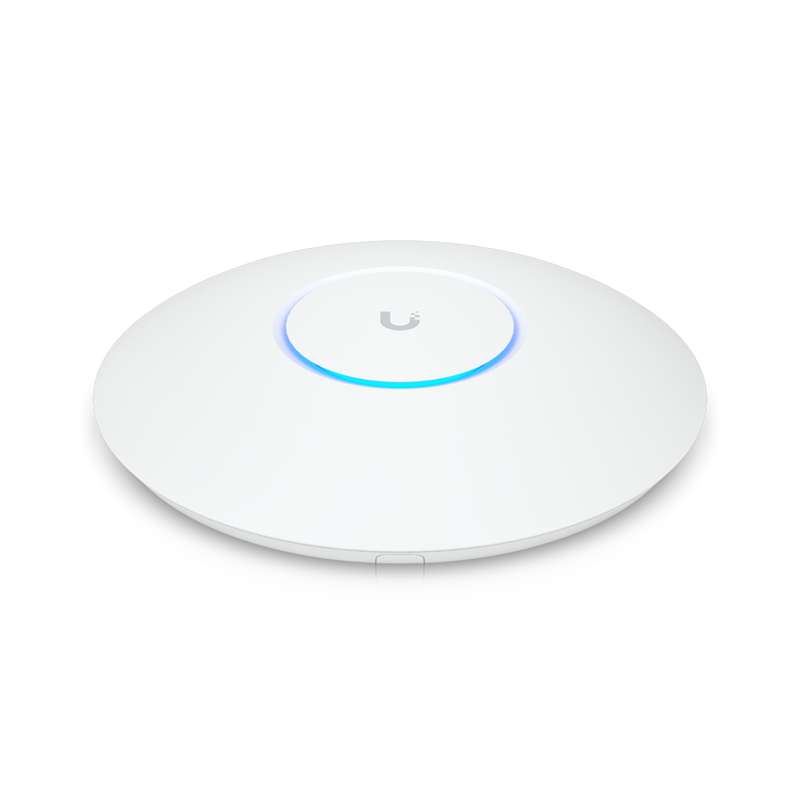

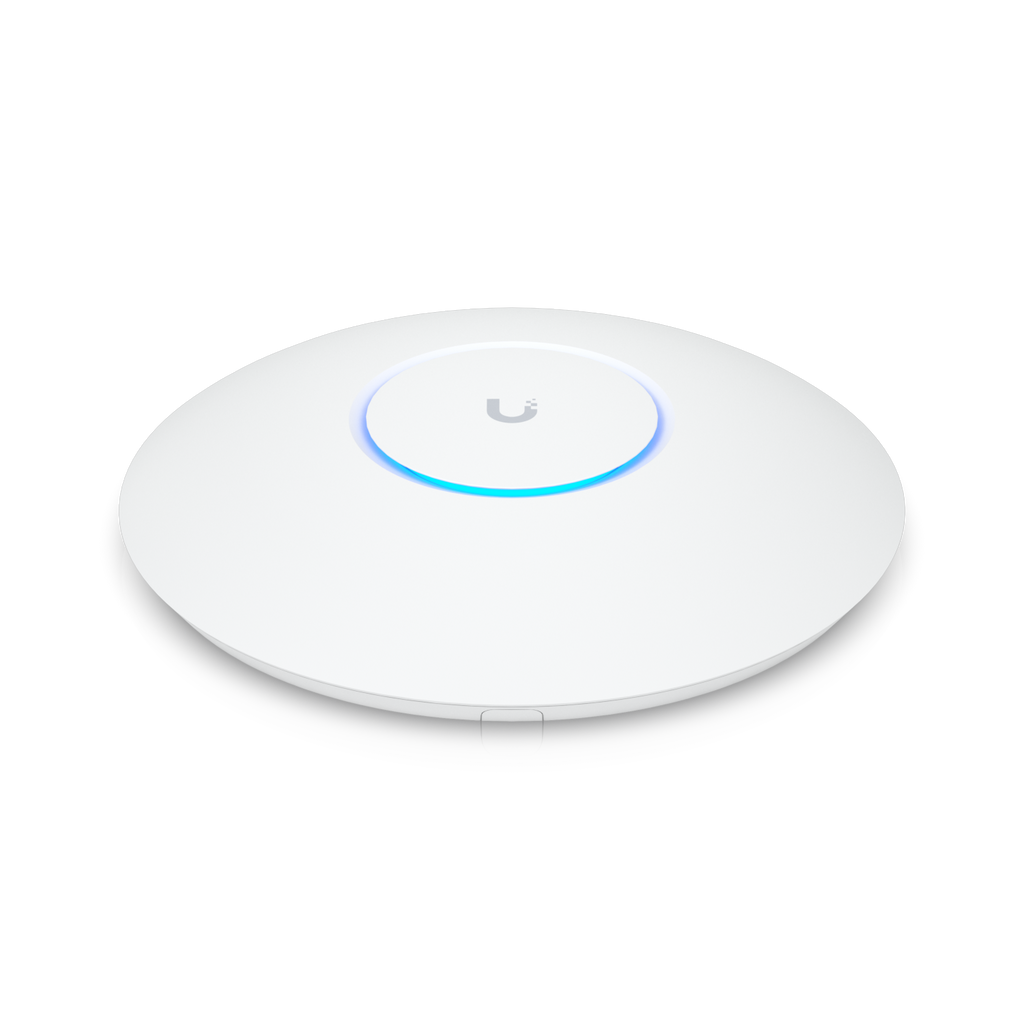

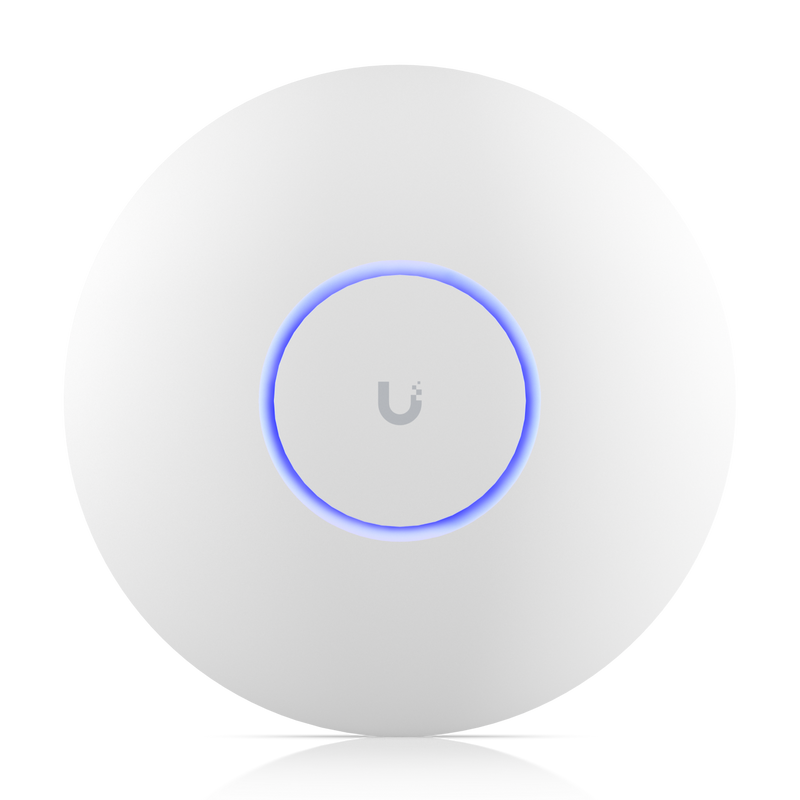

Ubiquiti Unifi Wi-Fi 6 Pro Access Point, 4x4 Mu-/Mimo Wi-Fi 6, 2.4GHz 573.5 Mbps & 5GHz 4.8Gbps (No POE Injector Included)

140 m² (1,500 ft²) coverage

350+ connected devices

WiFi 6 (4x4 MIMO)

Powered using PoE

Technical Specifications

Mechanical

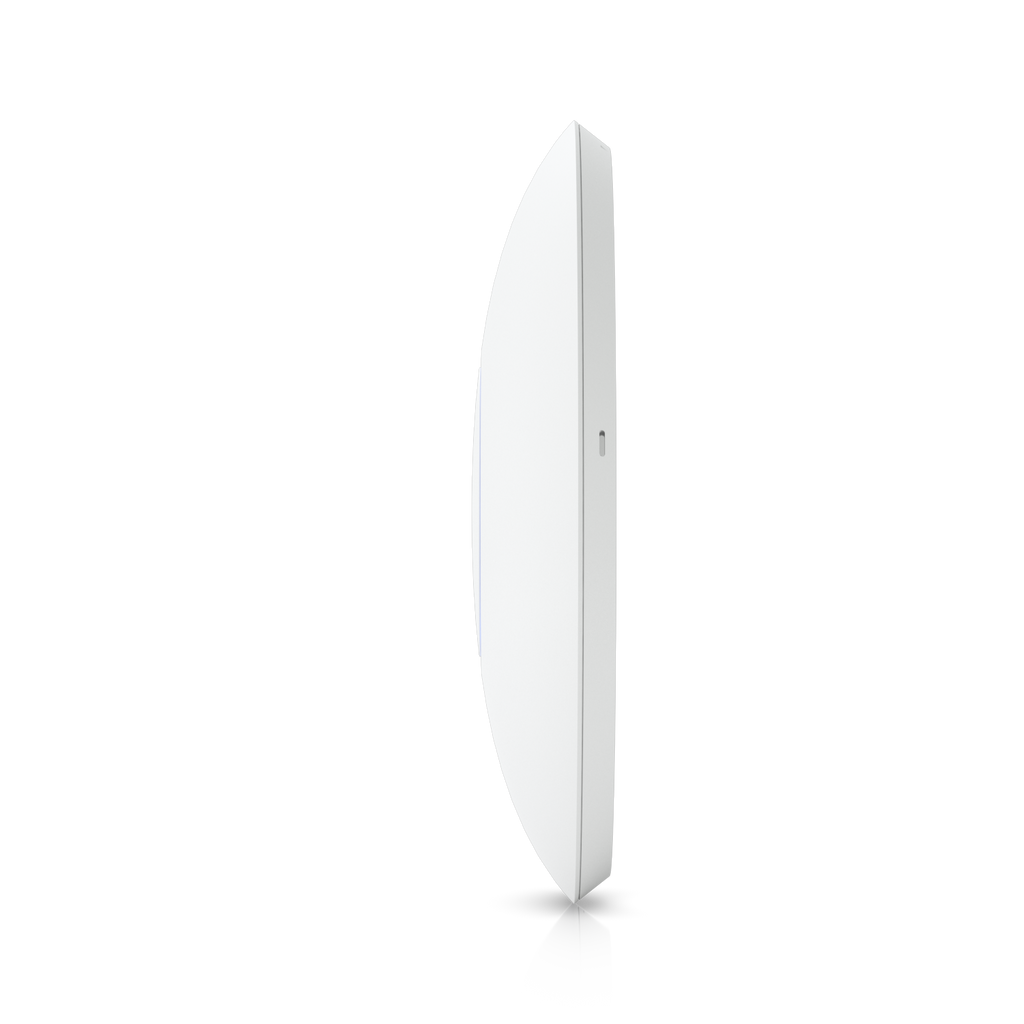

• Dimensions: Ø197 x 35 mm (Ø7.76 x 1.38")
• Weight:

• Enclosure: material Polycarbonate

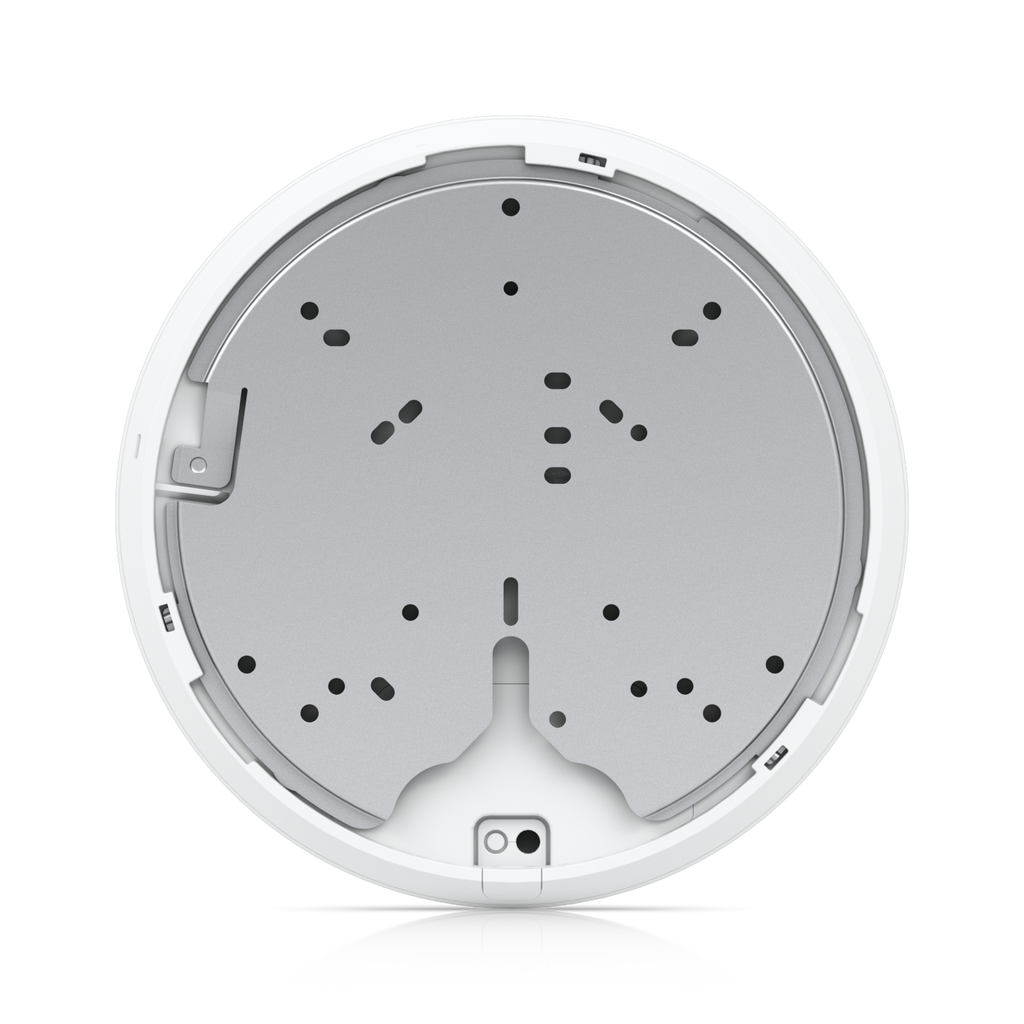

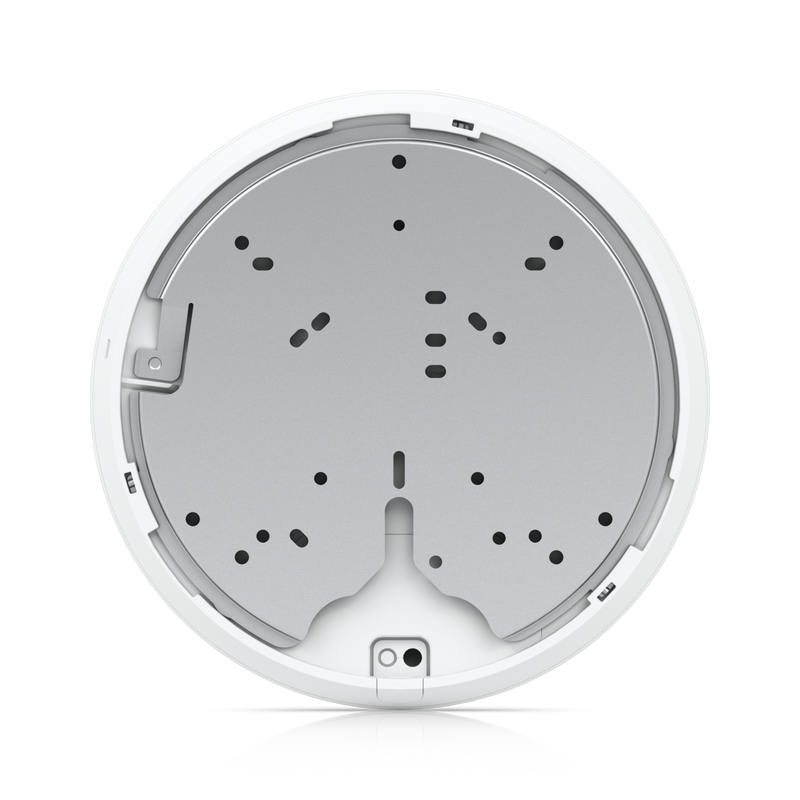

• Mount material: Stainless steel (SUS304)
• Weatherproofing: IP54

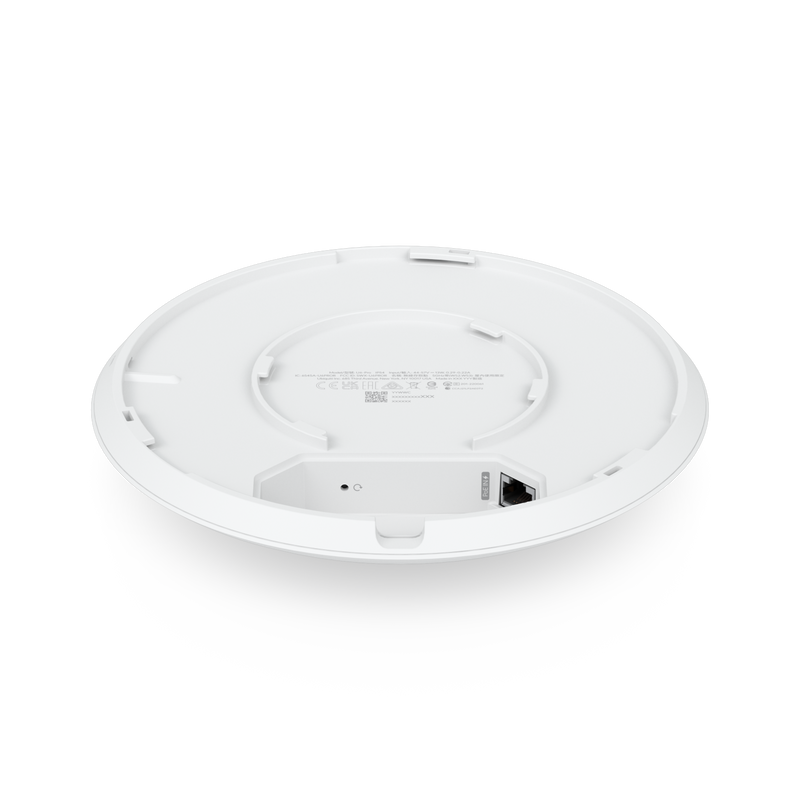

• Networking interface: (1) GbE RJ45 port
• Management interface: Ethernet, Bluetooth
• Power method: PoE
• Power supply: UniFi PoE switch, PoE adapter (not included)
• Supported voltage range: 44—57V DC
• Max. power consumption: 13W
• Max. TX power:

• MIMO:

• Throughput rate:

• Antenna gain:

• LEDs: White/blue
• Button: Factory reset
• Mounting: Wall/ceiling (Included)
• Operating temperature: -30 to 60° C (-22 to 140° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

• WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID: 8 per radio
• VLAN: 802.1Q
• Advanced QoS: Per-user rate limiting
• Guest traffic isolation: Supported
• Concurrent clients: 350+
• Zero wait DFS: Yes

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
• 802.11ac: (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11ax: (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

• UniFi Network Version 6.1.56 and later
