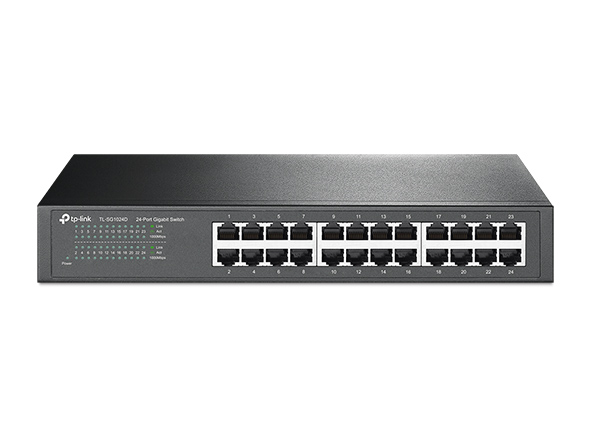

TP-Link SG1024D 24 Port Desktop/Rack Mountable Unmanaged Gigabit Switch

TP-LinkSKU: TL-SG1024D


24 10/100/1000Mbps ports

Innovative energy-efficient technology saves power consumption

Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation

Plug & play design



  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
  • Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
  • Fan Quantity: Fanless
  • Physical Security Lock: No
  • Power Supply: 100-240VAC, 50/60Hz
  • Power Consumption: Maximum: 13.1W (220V/50Hz)
  • Dimensions: ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
  • Mounting: Rack Mountable
  • Max Power Consumption: 13.62W(220V/50Hz)
  • Max Heat Dissipation: 46.44BTU/h


  • Switching Capacity: 48Gbps
  • Packet Forwarding Rate: 35.7Mpps
  • MAC Address; Table: 8K
  • Jumbo Frame: 10KB
  • Green Technology: Yes
  • Transfer Method: Store-and-Forward


  • Certification: FCC, RoHS

Package Contents:
24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

  • Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
